7M 40W Solar Street Light With Lithium Battery

Short Description:

Power: 40W

Material: Die-cast Aluminum

LED Chip: Luxeon 3030

Light Efficiency: >100lm/W

CCT: 3000-6500k

Viewing Angle: 120°

IP: 65

Working Environment: 30℃~+70℃


Product Detail

Product Tags

solar street light

OUR ADVANTAGES

-Strict Quality Control
Our factory and products are in compliance with most international standards, like List ISO9001 and ISO14001. We only use high-quality components for our products, and our experienced QC team inspects each solar system with more than 16 tests before our customers receive them.

-Vertical Production of All Main Components
We produce the solar panels, lithium batteries, led lamps, lighting poles, inverters all by ourselves, so that we can ensure a competitive price, faster delivery and faster technical support.

-Timely and Efficient Customer Service
Available 24/7 via email, WhatsApp, Wechat and over the phone, we serve our customers with a team of salespeople and engineers. A strong technical background plus good multilingual communication skills enable us to give quick answers to most of the customers’ technical questions. Our service team always flies to the customers and gives them technical support onsite.

PROJECT

projcet1
projcet2
projcet3
projcet4
6M 30W SOLAR LED STREET LIGHT

7M 40W SOLAR LED STREET LIGHT

Power 40W 6M 30W6M 30W
Material Die-cast Aluminum
LED Chip Luxeon 3030
Light Efficiency >100lm/W
CCT: 3000-6500k
Viewing Angle: 120°
IP 65
Working Environment: 30℃~+70℃
MONO SOLAR PANEL

MONO SOLAR PANEL

Module 120W MONO SOLAR PANEL
Encapsulation Glass/EVA/Cells/EVA/TPT
Efficiency of solar cells 18%
Tolerance ±3%
Voltage at max power(VMP) 18V
Current at max power(IMP) 6.67A
Open circuit voltage(VOC) 22V
Short circuit current(ISC) 6.75A
Diodes 1by-pass
Protection Class IP65
Operate temp.scope -40/+70℃
Relative humidity 0 to 1005
Warranty PM is not less than 90% in 10 years and 80% in 15 Years

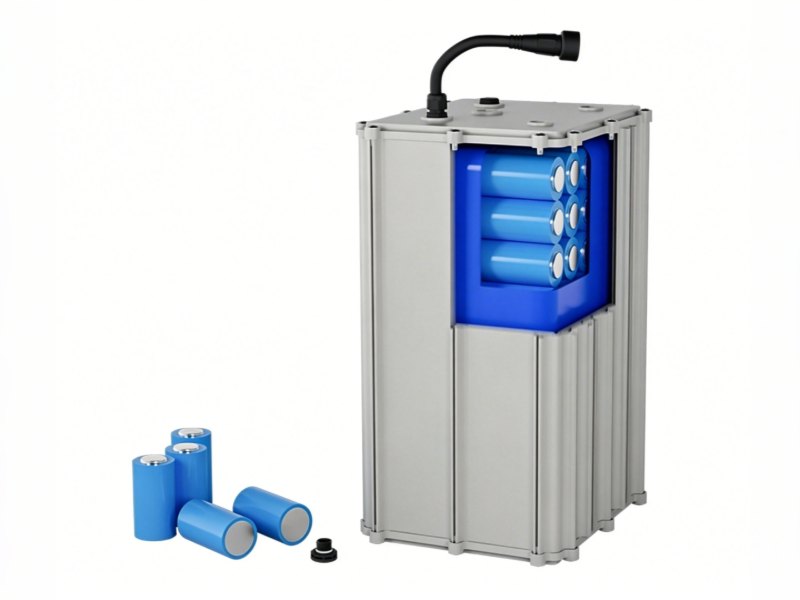

BATTERY

BATTERY

Rated Voltage 12.8V

 BATTERYBATTERY1

Rated Capacity 49.5 Ah
Approximate Weight(kg,±3%) 7.59KG
Terminal Cable (2.5mm²×2 m)
Maximum Charge Current 10 A
Ambient Temperature -35~55 ℃
Dimension Length (mm,±3%) 447mm
Width (mm,±3%) 155mm
Height (mm,±3%) 125mm
Warranty 3years
10A 12V SOLAR CONTROLLER

10A 12V SOLAR CONTROLLER

Rated working voltage 10A DC12V BATTERY
Max. discharging current 10A
Max. charging current 10A
Output voltage range Max panel/ 12V 150WP solar panel
The precision of constant current ≤3%
Constant current efficiency 96%
levels of protection IP67
no-load current ≤5mA
Over-charging voltage protection 12V
Over-discharging voltage protection 12V
Exit over-discharging voltage protection 12V
Turn on voltage 2~20V
Size 60*76*22MM
Weight 168g
Warranty 3years
solar street light

POLE

Material Q235

BATTERY

Height 7M
Diameter 80/170mm
Thickness 3.5mm
Light Arm 60*2.5*1500mm
Anchor Bolt 4-M18-700mm
Flange 320*320*14mm
Surface Treatment Hot dip galvanized+ Powder Coating
Warranty 20 Years
